fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Voltase: 12-36V

Peringkat Tahan Air: IP67

Resolusi kamera: AHD 720P / 1080P Opsional

Sudut Pandang: 120°-170° Opsional

Penglihatan Malam: Penglihatan Malam LED IR

Ukuran Layar: Monitor IPS 7 inci / 9 inci / 10,1 inci

Suhu Kerja: -20°C hingga +70°C

Jenis Lensa: Lensa HD Sudut Lebar

Informasi dasar

Tempat asal: Cina

Nama merek: KING CROWN

Sertifikasi: RoHS

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Ekspor paket standar

Waktu pengiriman: 45 hari

Syarat-syarat pembayaran: T/T,L/C

Menyediakan kemampuan: 1000 set/bulan

Galeri

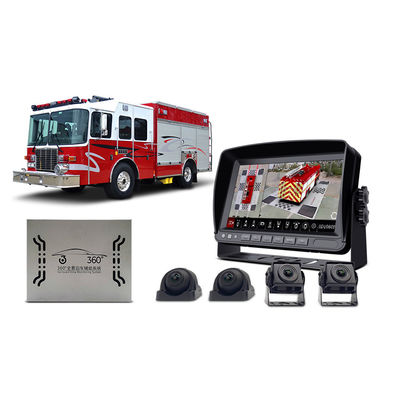

360 Car Camera System with Four AHD Cameras IPS Split Screen Monitor and IP67 Waterproof for Fleet Safety

Deskripsi Produk

360 Car Camera Systems providing Four AHD Cameras and IPS Split Screen Monitor for Wide Viewing Angles and Comprehensive Fleet Safety

Product Overview

4 Channels AHD Truck Camera System with IPS Split Screen Monitor for Heavy-Duty Vehicles, Bus Safety Camera, Fleet Monitoring Solution

Key Features

Supports up to four AHD cameras for comprehensive blind spot monitoring around the vehicle
IPS split-screen monitor provides clear multi-view display with wide viewing angles
HD video transmission delivers sharp images for safer reversing and maneuvering
Waterproof vehicle cameras ensure reliable operation in harsh outdoor environments
Intelligent trigger function automatically switches to the corresponding camera view
Ideal fleet safety camera solution for trucks, buses, vans, RVs, and trailers

Technical Specifications

Category	Specification
Product Type	4CH AHD Truck Camera System
Camera Resolution	AHD 720P / 1080P Optional
View Angle	120°-170° Optional
Night Vision	IR LED Night Vision
Waterproof Rating	IP67 / IP68
Voltage	DC 12V-24V
Lens	Wide-Angle HD Lens
Screen Size	7 Inch / 9 Inch / 10.1 Inch IPS Monitor
Wired or Wireless	Wired AHD System
Working Temperature	-20°C to +70°C
Vehicle Compatibility	Truck, Bus, Van, RV, Trailer, Construction Vehicle

Feature Highlights

360 Degree Surround Monitoring

The system supports four camera inputs positioned around the vehicle, providing drivers with a broader field of view and reducing dangerous blind spots during daily operations.

High-Definition Night Vision

Equipped with HD cameras and infrared night vision technology, the system maintains clear image quality in low-light and nighttime driving conditions.

Waterproof and Dustproof Housing

Built with rugged waterproof camera housings, the system can withstand rain, dust, vibration, and challenging outdoor environments for reliable performance.

Smart Multi-View Auto Switching

Multiple display modes including single, dual, triple, and quad split-screen views allow drivers to monitor different areas simultaneously. Trigger inputs enable automatic camera switching when reversing or turning.

Suitable for Heavy-Duty and Commercial Vehicles

Designed specifically for commercial transportation applications, the system is ideal for trucks, buses, trailers, RVs, agricultural machinery, and fleet management vehicles.

Frequently Asked Questions

What vehicles are compatible with this camera system?

The system is suitable for trucks, buses, vans, RVs, trailers, construction equipment, agricultural machinery, and other commercial vehicles operating on 12V or 24V power systems.

Do you provide OEM and ODM customization services?

Yes. VisionCarCamera offers OEM and ODM services including logo printing, packaging design, software customization, monitor size options, and camera configuration adjustments.

What is the warranty period?

Standard warranty is 12 months. Extended warranty options are available for bulk orders and long-term business partners.

What is the minimum order quantity (MOQ)?

Sample orders are accepted for testing and evaluation. MOQ requirements may vary depending on customization specifications.

Do you provide technical and installation support?

Yes. We provide installation manuals, wiring diagrams, product training, and professional technical support before and after sales.
