fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Resolusi: 1920*720

Ukuran Layar: IPS 15,88 inci

Kecerahan: 750cd/m2

Sudut Pandang: 170 derajat

Catu Daya: DC 8V-30V

Suhu Kerja: -20 ℃ ~ +70 ℃

Informasi dasar

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Ekspor paket standar

Waktu pengiriman: 45 hari

Syarat-syarat pembayaran: L/C,T/T

Menyediakan kemampuan: 1000 set/bulan

Galeri

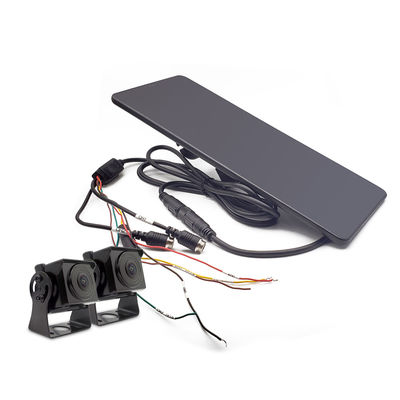

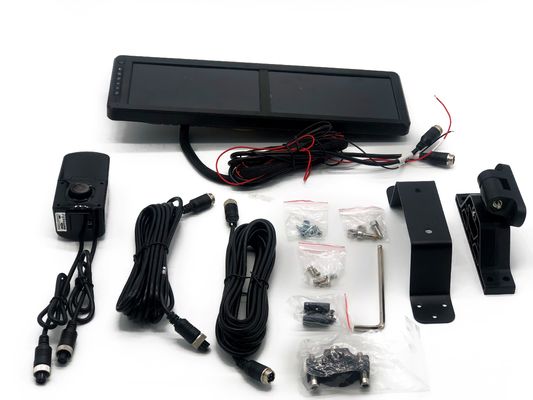

15.88 Inch IPS Screen Vehicle Electronic Rear View Mirror with AHD 1080P HD Recording and DC 9V~36V Wide Voltage for Trucks

Deskripsi Produk

15.88 Inch Vehicle Electronic Rear View Mirror Full Screen Streaming AHD Heavy Duty Truck Monitor with Reverse Parking Assist

15.88 Inch Full Screen Streaming Rear View Mirror Camera
AHD HD Dual Channel Driving Recorder, Heavy Duty Truck Rearview Mirror Monitor with Reverse Parking Assist for Commercial Vehicle

Key Features

Equipped with oversized 15.88-inch full-fit streaming touch screen to realize full-frame real-time rear scene display and eliminate traditional rearview blind zone.
Adopted advanced AHD 1080P high definition imaging sensor, synchronously record front road condition and rear cargo area footage with crisp picture quality day and night.
Built-in optimized low-light enhancement algorithm to deliver clear imaging under dusk, tunnel and dim night driving environments without extra auxiliary lamp.
Supports DC 9V~36V universal wide voltage input, perfectly compatible with 12V & 24V large trucks, vans and engineering commercial vehicles.
Intelligent parking linkage design automatically switches to full-screen reversing image once hanging reverse gear for precise obstacle observation during backing up.
Loop video recording function with TF card storage preserves driving footage effectively for accident evidence and fleet driving management.

Technical Specification

Category	Parameter Value
Product Type	15.88" Streaming Digital Rear View Mirror DVR for Truck & Commercial Van
Screen Size	15.88 Inch
Camera Resolution	AHD 1080P Front & Rear HD Recording
Night Vision	Low-Light Optimized Night Vision
Input Voltage	DC 9V~36V Wide Voltage, 12V/24V Truck Universal
Installation	Original Rearview Mirror Replacement Mount, Plug & Play Wiring
Working Temperature	-20℃ ~ +70℃ Anti-high & Low Temperature Adaptation
Applicable Vehicles	Cargo Truck, Box Van, Bus, RV, Engineering Commercial Vehicle

Product Overview

15.88-inch streaming rearview mirror recorder is tailor-made by Vision Car Camera targeting various heavy-duty trucks and logistics vans. Upgraded with ultra-large full-view display panel, it upgrades conventional optical rear mirror into digital streaming monitoring equipment, paired with AHD high-definition front and rear cameras to achieve dual-channel synchronous video recording. Featured with wide-range 9-36V power input and low-light night vision optimization, the device can stably work on all mainstream 12V/24V commercial vehicles. Triggered automatically by reverse signal to pop up full-screen rear sight, it largely improves reversing safety for truck drivers and becomes an essential upgrade accessory for freight fleets worldwide.

Frequently Asked Questions

Q1: Which types of vehicles fit this 15.88 inch streaming rearview mirror?

A1: It matches all 12V/24V cargo trucks, box vans, passenger coaches and RVs that support DC9-36V power supply, widely used in logistics and passenger transportation fields.

Q2: Can VisionCarCamera customize OEM service on this rearview mirror product?

A2: Yes, we provide customizable OEM & ODM service including private logo printing, function adjustment, package customization and wire harness change as clients' requirements.

Q3: What's the warranty policy of this truck streaming mirror recorder?

A3: One-year factory warranty is provided for the whole set, covering non-artificial quality faults of screen, mainboard and matched cameras.

Q4: What is the bulk order MOQ for this rearview mirror monitor?

A4: Regular bulk MOQ is 50 sets; small trial purchase is negotiable for newly-established cooperative partners.

Q5: Will you provide relevant installation guidance after ordering?

A5: Detailed English installation manual is attached to each shipment, and our technical team offers online remote troubleshooting support for installation problems.
