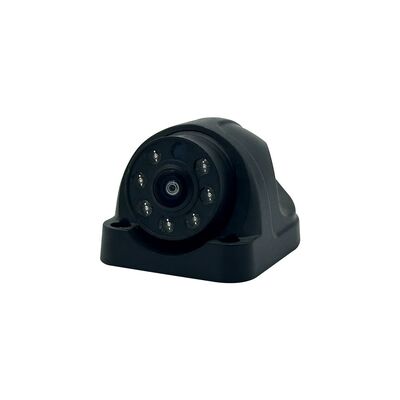

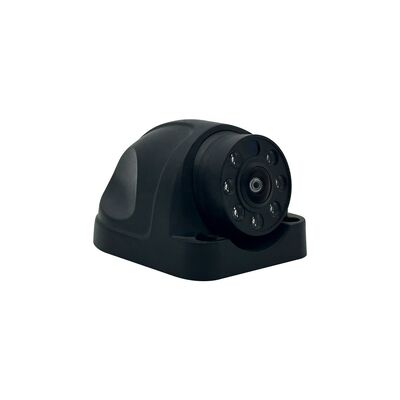

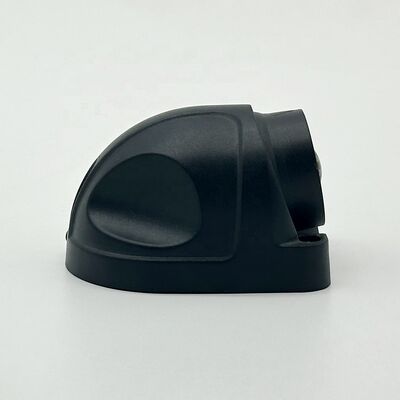

Commercial Vehicle Blind Zone Camera for Trucks & Buses – AHD HD Night Vision IP68
OEM AHD Starlight Night Vision Truck Camera | Blind Spot Monitoring Camera IP68
Product Overview
This Starlight Night Market HD Camera is designed for commercial vehicles such as trucks, buses, vans, and fleet vehicles, delivering reliable blind-spot and rear-view monitoring in both daytime and ultra-low-light environments.
Equipped with an AHD high-definition processing chip and a 170° ultra-wide fisheye lens, the camera provides a clear, distortion-controlled panoramic view to significantly improve driving safety and situational awareness.
Its compact, vehicle-specific design allows discreet installation without affecting the original appearance of the vehicle, making it ideal for OEM, fleet upgrades, and aftermarket installations.
Key Advantages
True Starlight Night Vision
Unlike conventional infrared cameras that switch to black-and-white at night, this starlight camera captures full-color images in low-light environments without auxiliary infrared or white LEDs. Road conditions, lane markings, and surrounding vehicles remain clearly visible even in urban night traffic or poorly lit highways.
170° Ultra-Wide Panoramic View
The 170-degree fisheye lens dramatically reduces blind spots by covering multiple traffic lanes at once. This wide field of view is especially effective for:
- Lane changes
- Right-turn blind-spot monitoring
- Reversing and docking
- Urban and highway driving safety
High-Definition AHD Signal Output
With 720P HD resolution and support for AHD/CVBS video signals, the camera ensures sharp image transmission with low latency. It is fully compatible with:
- Android large-screen displays
- Small digital monitors
- OEM vehicle head units
Rugged Design for Commercial Vehicles
IP68 Waterproof & Shockproof
The camera housing is sealed to IP68 standards, ensuring reliable performance in rain, snow, mud, and high-humidity environments. Prolonged energized soak testing verifies internal sealing stability, making it suitable for harsh road and weather conditions.
6-Layer All-Glass Lens
A 6-layer full-glass optical lens enhances light intake while minimizing glare, moire, and image distortion. The large aperture design improves clarity in both daytime and nighttime scenes.
Compact & Vehicle-Specific Structure
With its small footprint and lightweight body, the camera integrates seamlessly into vehicle exteriors. Its discreet appearance reduces theft risk and maintains the original vehicle aesthetics.
Flexible Installation & Interface Options
To support various vehicle platforms and regional requirements, the camera offers three connector options:
- Aviation connector
- AV connector
- BMW-style connector
This flexibility allows easy integration with different MDVR systems, monitors, and OEM wiring harnesses.
Typical Applications
- Truck blind-spot monitoring
- Bus rear-view and side-view safety systems
- Van reversing and lane assistance
- Fleet vehicle monitoring solutions
- Commercial MDVR camera systems
Technical Specifications
| Product Model |
MR-24081512 |
| Image Sensor |
PC1058 |
| Video Signal |
AHD / CVBS |
| Resolution |
720P |
| Lens Angle |
170° ultra-wide |
| Lens Type |
Corrected full-glass fisheye lens |
| Waterproof Rating |
IP68 / Shockproof level 6.8 |
| Color Processing |
Automatic color correction |
| Operating Voltage |
DC 12V |
| Connectors |
Aviation / AV / BMW type |
Why Choose This Camera for Your Fleet or OEM Project?
This starlight HD camera combines professional imaging performance, industrial-grade durability, and installation flexibility, making it a dependable choice for commercial vehicle safety systems. Whether used as a standalone blind-spot camera or integrated into an MDVR solution, it delivers consistent image quality and long-term reliability in demanding environments.
