Rumah /Produk/Sistem Sensor Parkir/4 Sensor Parking Radar System for Truck and Large Vehicle with Audible Alerts Visual Distance Display

4 Sensor Parking Radar System for Truck and Large Vehicle with Audible Alerts Visual Distance Display

30 poin
MOQ
negotiable
harga
4 Sensor Parking Radar System for Truck and Large Vehicle with Audible Alerts Visual Distance Display
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Tahan air: IP67 Tahan Air
Catu Daya: DC12V
Volume Alarm: 70-80dB (30cm)
Jenis Alarm: Bi Bi Buzz
Kekuatan Maksimum: 2,5W
Berat: 0,85kg
Ukuran Probe: 22*20mm
Menyoroti:

4 sensor parking radar system

,

truck parking radar with alerts

,

large vehicle distance display system
Informasi dasar
Tempat asal: Shenzhen, Tiongkok
Nama merek: KINGCROWN
Sertifikasi: RoHS
Nomor model: BG-S4S-YYFM
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket Standar Ekspor
Waktu pengiriman: 45 hari
Syarat-syarat pembayaran: T/T,L/C
Menyediakan kemampuan: 1000Set/bulan
Deskripsi Produk

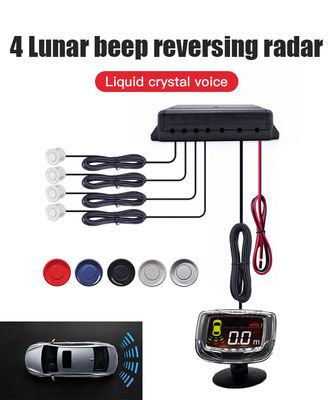

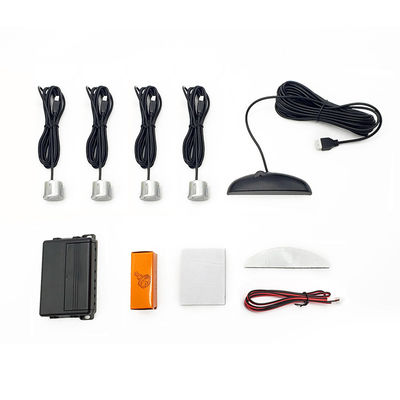

4 Sensor Parking Radar System for Truck and Large Vehicle with Audible Alerts Visual Distance Display
The 4 Sensor Parking Radar System for Truck and Large Vehicles is specifically designed to provide enhanced safety and convenience for reversing and parking large vehicles, including trucks, vans, buses, RVs, and delivery vehicles. This system is equipped with 4 high-performance ultrasonic sensors that detect obstacles around your vehicle, providing both audible alerts and a visual distance display to help drivers park with precision and confidence.
Key Features
  • 4 Ultrasonic Sensors: Provides full coverage around the vehicle during reversing, detecting obstacles at a range of 0.3m to 2.5m
  • LED Distance Display: Color-coded display shows distance with green, yellow, and red indicators
  • Audible Alerts: Warning sound increases in frequency as vehicle approaches obstacles
  • Waterproof Sensors: IP67 rated for reliable operation in all weather conditions
  • Wide Compatibility: Works with trucks, buses, vans, delivery vehicles, and RVs using 12V DC power
  • Adjustable Warning Sound: Customizable alert volume for different environments
  • Easy Installation: Plug-and-play solution requiring no drilling for most vehicles
Technical Specifications
Package Size 30x21x5.5cm
Current Consumption 20mA-200mA
Power Supply DC12V
Weight 0.85KG
Operating Temperature -40°C to +80°C
Alarm Volume 70-80dB (30cm)
Working Voltage 9-36V
Alarm Type Bi Bi Buzz
Maximum Power 2.5W
Probe Size 22×20mm
Applicable Vehicle Universal
Waterproof Rating IP67
Applications
  • Trucks and Delivery Vehicles: Enhanced safety for reversing in tight spaces and loading docks
  • Buses and Public Transport: Precision parking and obstacle avoidance for passenger safety
  • RVs and Recreational Vehicles: Easy maneuvering in campgrounds and crowded parking areas
  • Vans and Fleet Vehicles: Accident prevention for commercial fleet operations
Frequently Asked Questions
How do I install this system?
The 4-sensor parking radar system is designed for easy installation. It comes with all necessary wiring and connectors, and no drilling is required for most vehicles.
Will this system work on large trucks and buses?
Yes, this system is specifically designed for large vehicles, including trucks, buses, vans, and RVs. It is compatible with most vehicles that operate on a 12V DC power supply.
Is the system waterproof?
Yes, the sensors are IP67 waterproof, meaning they are fully protected against water and dust, making the system perfect for use in various weather conditions.
Can I adjust the volume of the warning sound?
Yes, the system includes an adjustable warning sound feature, allowing you to customize the volume of the alerts based on your preference and environment.
How far can the sensors detect objects?
The sensors can detect objects at a range of 0.3m to 2.5m, providing plenty of time to react before a collision occurs.
