360 Degree Parking Camera for Commercial Fleet with Surround Monitoring Blind-Spot Safety System

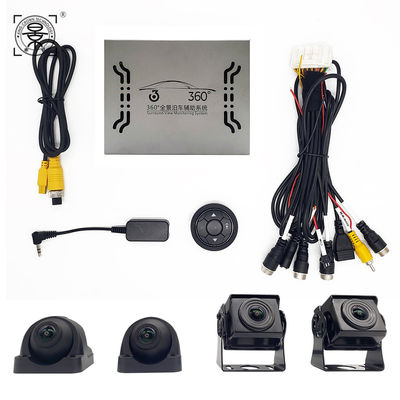

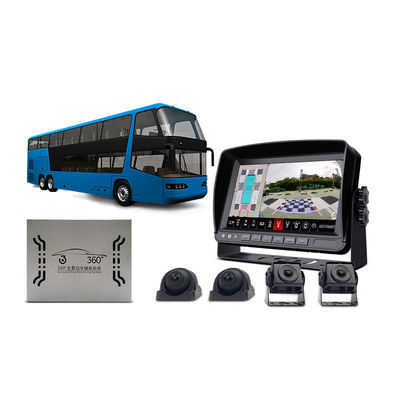

This professional 360-degree surround view system is designed for buses, fire engines, trucks and other oversized commercial vehicles. Featuring 1080P cameras, wide-angle lenses, waterproof housings and a high-definition monitor, it delivers seamless bird-eye stitching, blind-spot reduction and safer maneuvering in city, highway and fleet operations across global markets.
Key Features
- 1080P High-Definition Imaging - Delivers crisp, detailed visibility around large commercial vehicles for safer maneuvering in busy environments.

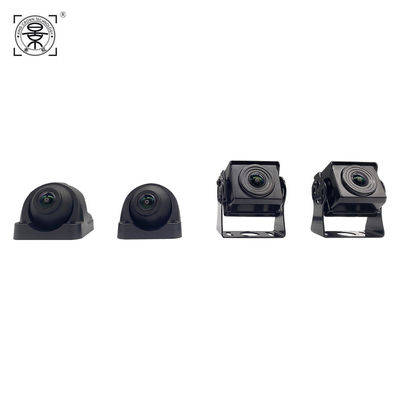

- 170° Ultra-Wide Lens Coverage - Front, rear and side cameras provide complete perimeter observation to eliminate blind spots.
- All-Weather Waterproof & Anti-Fog Design - Industrial-grade camera housings ensure stable performance in rain, snow, dust and high-humidity conditions.

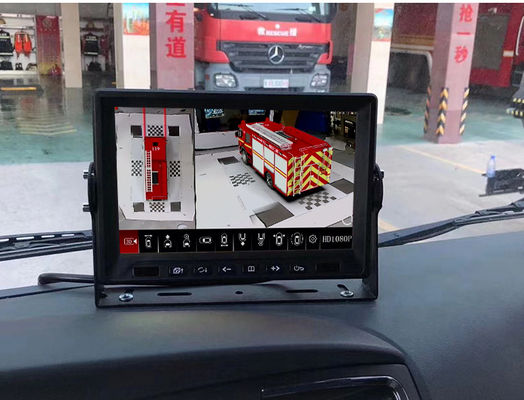

- True 360° Seamless Stitching View - The processor combines four camera feeds into a smooth panoramic bird-eye perspective in real time.
- Optimized for Oversized Vehicles - Supports buses, fire engines, trucks and long-body fleets with flexible calibration to match extended wheelbases.
- Parking Assistance with Dynamic Guide Lines - Helps drivers reverse accurately in narrow spaces and crowded terminals.
- Optional Loop Recording & Monitoring Integration - Compatible with DVR modules for continuous video recording and security tracking.
Applications
- Public transport buses
- Double-deck sightseeing buses
- Fire engines and emergency response vehicles
- Logistic trucks, long-haul trailers
- Construction vehicles & special-purpose fleets
- Airport shuttle & port transportation vehicles
Technical Specifications
| Camera Resolution |
1080P AHD |
| Lens Angle |
170° wide-angle |
| Camera Quantity |
4 units |
| Video Format |
AHD/NTSC/PAL (auto match) |

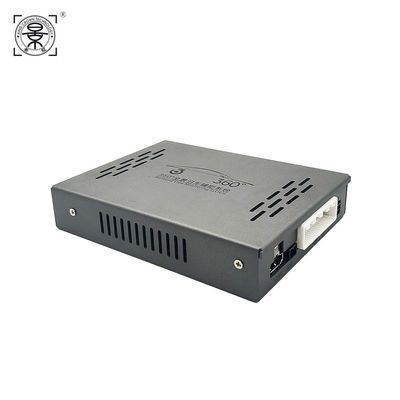

| Processor Box |
Multi-channel stitching module |
| Monitor Size |
7-inch HD TFT (as shown) |
| Waterproof Rating |
IP67/IP68 (camera) |
| Operating Voltage |
DC 12-24V wide voltage |
| Night Vision |
IR-assisted low-light imaging |
| Storage (Optional) |
Supports DVR loop recording |
| Operating Temperature |
−20°C to 70°C |
Why Choose This Product
This heavy-vehicle 360 system focuses on true practicality: strong anti-interference cameras, stable calibration for long-body vehicles, and a professional monitor optimized for fleet safety. Whether used for public transportation, emergency response or logistics fleets, it ensures reliable visibility and operational safety.
This 360 degree parking camera is popular in markets: Middle East, Europe, South America, Russia, Southeast Asia and Africa, where large commercial fleets require advanced blind-spot monitoring, city driving assistance and stable all-weather camera performance.
Shipping Information
The 360 degree parking camera will be shipped via a reputable courier service within 2 business days of placing the order. Shipping times may vary depending on the destination, but we aim to have the 360 degree parking camera delivered within 5-7 business days. Customers will receive a tracking number to track their package once it has been shipped.
Frequently Asked Questions
Q1: What is your product warranty terms?
A: Generally, we provide 12 months warranty for all customers.
Q2: What is your MOQ requirement?
A: Depend on different product, small quantity order can be acceptable.
Q3: What kind of payment term can be acceptable?
A: T/T or LC is acceptable.
Q4: What is the lead time of the samples and mass goods?
A: The lead time of the sample: 5-7 days. The mass goods should be negotiated.
Q5: What is your after sales service rule?
A: Generally, we give suggestion of spare parts when customer place order. And we will provide technical support online, during the customer meet problem of installation.
VisionCarCamera Brand Advantages
VisionCarCamera has been a leader in automotive electronics for over 15 years, providing innovative and reliable solutions such as 360 degree parking camera. Our expertise includes developing advanced camera systems, vehicle monitoring technologies, and safety devices. With OEM and ODM capabilities, we offer customized solutions for clients worldwide. Our products comply with international certifications like ISO9001, CE, and RoHS, ensuring top-quality standards. Serving markets across Europe, the United States, the Middle East, and more, VisionCarCamera is your trusted partner for cutting-edge vehicle safety systems.
